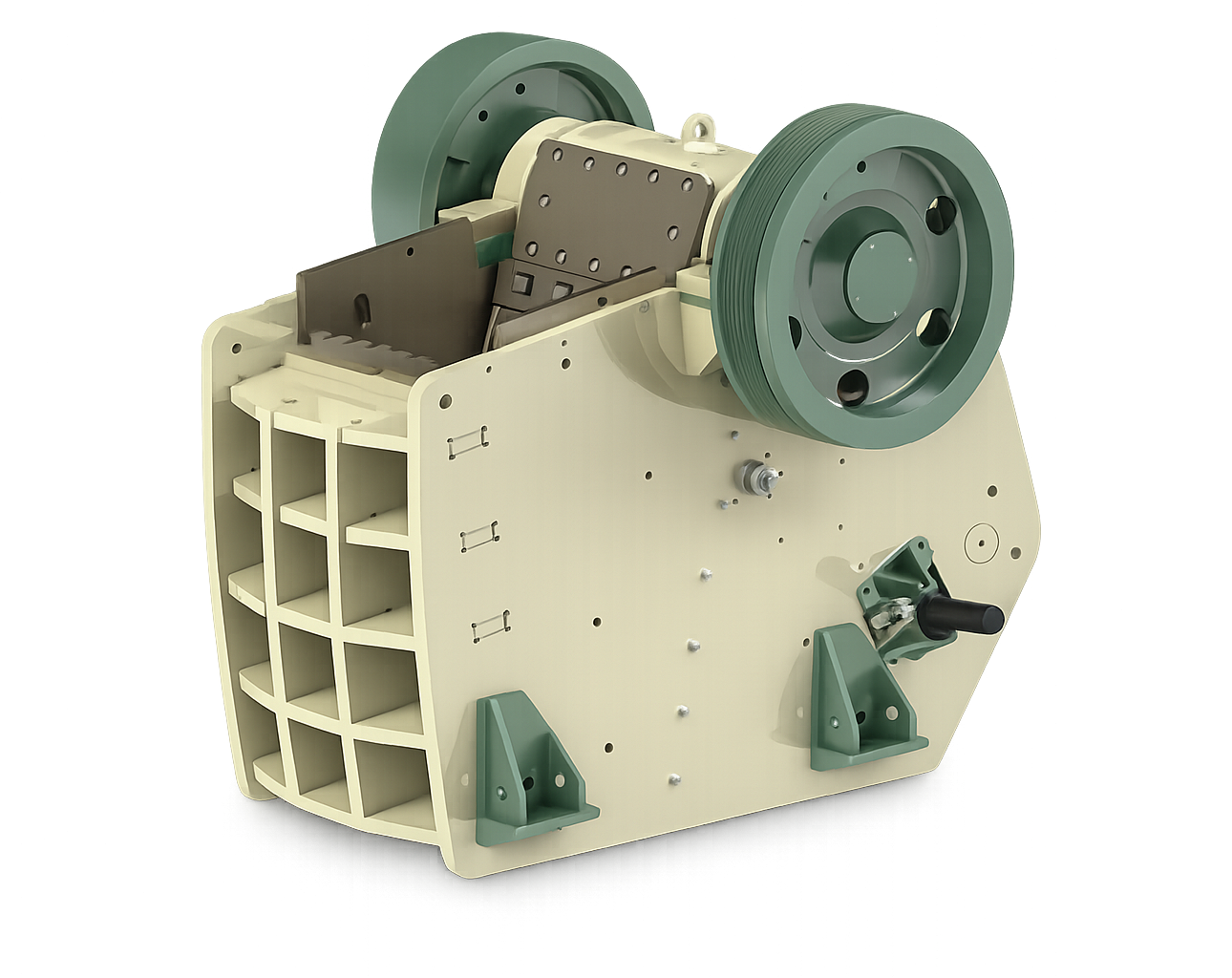

Renowned for its outstanding performance, the Next-Gen DIAMOND Primary Jaw Crusher delivers superior efficiency, long-lasting durability and reliable output. Its robust design and capability to process a wide range of rocks ensure consistent productivity and help keep your operations ahead in the market.
Engineered for dependable output, long service life and efficient day-to-day operation.
| Model | Feed Opening | Max Feed Size (in) | Max Feed Size (mm) | Motor Power (kW) | Motor Power (HP) | Crusher Speed (RPM) |
|---|---|---|---|---|---|---|
| DJX 1108 | 42 x 32 in / 1080 x 816 mm | 30 | 750 | 110 | 150 | 240 |
| DJX 1208 | 46 x 32 in / 1170 x 816 mm | 30 | 750 | 132 | 180 | 225 |
| DJX 1409 | 52 x 36 in / 1320 x 915 mm | 34 | 850 | 185 | 240 | 215 |
| Model | 3.5 in / 90 mm | 4 in / 100 mm | 5 in / 125 mm | 6 in / 150 mm | 7 in / 175 mm |
|---|---|---|---|---|---|
| DJX 1108 | 170-180 | 190-200 | 210-220 | 220-230 | - |
| DJX 1208 | 200-220 | 230-250 | 260-280 | 280-300 | - |
| DJX 1409 | - | 350-380 | 390-410 | 420-460 | 460-500 |
